Bring-Your-Own-Task (BYOT)¶

Date created: 2024/08/15

Last Modified: 2024/08/15

Description: Create custom task for HeartKit end-to-end

Overview¶

In this notebook, we provide a complete walkthrough of creating a custom task. To keep things simple, we will create a task that will predict heart rate from raw ECG signal.

Below we outline the high-level steps to create a custom task:

1. Identify datasets and create corresponding dataloaders (e.g. PTB-XL)
2. Create data pipeline for training, validation, and test sets
3. Implement task routines for modes: train, evaluate, export and optionally demo.

In this example, we will implement only train and evaluate modes.

Datasets

• PTB-XL: The PTB-XL is a large publicly available electrocardiography dataset. It contains 21837 clinical 12-lead ECGs from 18885 patients of 10 second length. The ECGs are sampled at 500 Hz and are annotated by up to two cardiologists.

In [1]:

import os
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'
import random
from typing import Generator
from collections.abc import Iterable
from pathlib import Path
import tempfile

import keras
import heartkit as hk
import physiokit as pk
import tensorflow as tf
import numpy as np
import numpy.typing as npt
import neuralspot_edge as nse
import matplotlib.pyplot as plt

import os os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2' import random from typing import Generator from collections.abc import Iterable from pathlib import Path import tempfile import keras import heartkit as hk import physiokit as pk import tensorflow as tf import numpy as np import numpy.typing as npt import neuralspot_edge as nse import matplotlib.pyplot as plt

2024-08-16 15:31:46.467589: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:485] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
2024-08-16 15:31:46.475433: E external/local_xla/xla/stream_executor/cuda/cuda_dnn.cc:8454] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
2024-08-16 15:31:46.477772: E external/local_xla/xla/stream_executor/cuda/cuda_blas.cc:1452] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered

In [2]:

# Be sure to set the dataset path to the correct location
os.environ['HK_DATASET_PATH'] = os.getenv('HK_DATASET_PATH', './datasets')

plot_theme = hk.utils.dark_theme
nse.utils.silence_tensorflow()
_ = hk.utils.setup_plotting(plot_theme)

# Be sure to set the dataset path to the correct location os.environ['HK_DATASET_PATH'] = os.getenv('HK_DATASET_PATH', './datasets') plot_theme = hk.utils.dark_theme nse.utils.silence_tensorflow() _ = hk.utils.setup_plotting(plot_theme)

1. Create Dataloaders¶

We will create a dataloader class for the dataset PTB-XL since it provides heart beat locations via blabels.

Given a raw ECG signal, we will compute the heart rate given the beat locations in the frame. The rate will be calculated based on the RR intervals using PhysioKit. The output will be the ecg signal and the heart rate in beats per second.

In [3]:

class PtbxlDataloader(hk.HKDataloader):
    def __init__(self, ds: hk.datasets.PtbxlDataset, **kwargs):
        """Dataloader for PTB-XL to generate HeartRateTask data."""
        super().__init__(ds=ds, **kwargs)

    def patient_data_generator(
        self,
        patient_id: int,
        samples_per_patient: int,
    ):
        # Compute input size (might be different due to sampling rate)
        input_size = int(np.ceil((self.ds.sampling_rate / self.sampling_rate) * self.frame_size))

        with self.ds.patient_data(patient_id) as h5:
            ecg = h5["data"][:]
            # Beat locations. Convert 100Hz to ds.sampling_rate
            blabels = h5["blabels"][:, 0]*(self.ds.sampling_rate/100.0)
        # END WITH

        for _ in range(samples_per_patient):
            # Select random lead and frame location
            lead = random.choice(self.ds.leads)
            frame_start = np.random.randint(0, ecg.shape[1] - input_size)
            frame_end = frame_start + input_size

            # Compute BPM by selecting beats within frame, computing RR intervals and averaging
            frame_blabels = blabels[(blabels >= frame_start) & (blabels < frame_end)]
            rri = pk.ecg.compute_rr_intervals(frame_blabels)
            bpm = 60.0 / (np.nanmean(rri) / self.ds.sampling_rate)

            # Extract ecg frame
            x = ecg[lead, frame_start:frame_end].copy()

            # Resample if needed
            if self.ds.sampling_rate != self.sampling_rate:
                x = pk.signal.resample_signal(x, self.ds.sampling_rate, self.sampling_rate, axis=0)
                x = x[:self.frame_size]  # Ensure frame size

            x = np.nan_to_num(x).astype(np.float32)
            x = x.reshape(-1, 1)
            y = bpm / 60.0 # Make beats per second
            yield x, y
        # END FOR

    def data_generator(
        self,
        patient_ids: list[int],
        samples_per_patient: int | list[int],
        shuffle: bool = False,
    ) -> Generator[tuple[npt.NDArray, npt.NDArray], None, None]:
        if isinstance(samples_per_patient, Iterable):
            samples_per_patient = samples_per_patient[0]
        for pt_id in nse.utils.uniform_id_generator(patient_ids, shuffle=shuffle):
            for x, y in self.patient_data_generator(pt_id, samples_per_patient):
                yield x, y
            # END FOR
        # END FOR

class PtbxlDataloader(hk.HKDataloader): def __init__(self, ds: hk.datasets.PtbxlDataset, **kwargs): """Dataloader for PTB-XL to generate HeartRateTask data.""" super().__init__(ds=ds, **kwargs) def patient_data_generator( self, patient_id: int, samples_per_patient: int, ): # Compute input size (might be different due to sampling rate) input_size = int(np.ceil((self.ds.sampling_rate / self.sampling_rate) * self.frame_size)) with self.ds.patient_data(patient_id) as h5: ecg = h5["data"][:] # Beat locations. Convert 100Hz to ds.sampling_rate blabels = h5["blabels"][:, 0]*(self.ds.sampling_rate/100.0) # END WITH for _ in range(samples_per_patient): # Select random lead and frame location lead = random.choice(self.ds.leads) frame_start = np.random.randint(0, ecg.shape[1] - input_size) frame_end = frame_start + input_size # Compute BPM by selecting beats within frame, computing RR intervals and averaging frame_blabels = blabels[(blabels >= frame_start) & (blabels < frame_end)] rri = pk.ecg.compute_rr_intervals(frame_blabels) bpm = 60.0 / (np.nanmean(rri) / self.ds.sampling_rate) # Extract ecg frame x = ecg[lead, frame_start:frame_end].copy() # Resample if needed if self.ds.sampling_rate != self.sampling_rate: x = pk.signal.resample_signal(x, self.ds.sampling_rate, self.sampling_rate, axis=0) x = x[:self.frame_size] # Ensure frame size x = np.nan_to_num(x).astype(np.float32) x = x.reshape(-1, 1) y = bpm / 60.0 # Make beats per second yield x, y # END FOR def data_generator( self, patient_ids: list[int], samples_per_patient: int | list[int], shuffle: bool = False, ) -> Generator[tuple[npt.NDArray, npt.NDArray], None, None]: if isinstance(samples_per_patient, Iterable): samples_per_patient = samples_per_patient[0] for pt_id in nse.utils.uniform_id_generator(patient_ids, shuffle=shuffle): for x, y in self.patient_data_generator(pt_id, samples_per_patient): yield x, y # END FOR # END FOR

Visualize output of dataloader¶

We will grab a single sample from the dataloader and visualize the output.

In [4]:

ds = hk.DatasetFactory.get("ptbxl")(
    path=Path(os.environ['HK_DATASET_PATH']) / "ptbxl"
)
dl = PtbxlDataloader(
    ds=ds,
    frame_size=4000,
    sampling_rate=500,
)

ds = hk.DatasetFactory.get("ptbxl")( path=Path(os.environ['HK_DATASET_PATH']) / "ptbxl" ) dl = PtbxlDataloader( ds=ds, frame_size=4000, sampling_rate=500, )

In [5]:

patient_ids = np.random.permutation(ds.patient_ids)
x, y = next(dl.data_generator(patient_ids=patient_ids, samples_per_patient=1))

patient_ids = np.random.permutation(ds.patient_ids) x, y = next(dl.data_generator(patient_ids=patient_ids, samples_per_patient=1))

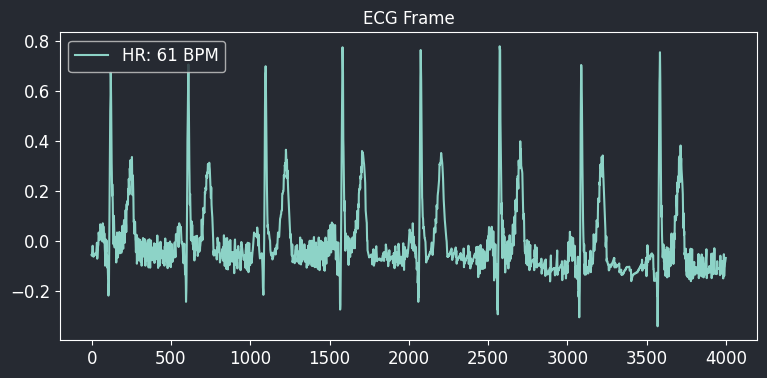

In [6]:

fig, ax = plt.subplots(nrows=1, ncols=1, figsize=(9, 4))
ax.plot(x, label=f"HR: {60*y:0.0f} BPM")
ax.set_title("ECG Frame")
ax.legend()
fig.show()

fig, ax = plt.subplots(nrows=1, ncols=1, figsize=(9, 4)) ax.plot(x, label=f"HR: {60*y:0.0f} BPM") ax.set_title("ECG Frame") ax.legend() fig.show()

Register dataloaders to factory¶

We will then create a simple DataloaderFactory to ease the creation of dataloaders based on dataset names.

In [7]:

DataloaderFactory = nse.utils.create_factory(factory="BYOT.DataloaderFactory", type=hk.HKDataloader)
DataloaderFactory.register("ptbxl", PtbxlDataloader)

DataloaderFactory = nse.utils.create_factory(factory="BYOT.DataloaderFactory", type=hk.HKDataloader) DataloaderFactory.register("ptbxl", PtbxlDataloader)

2. Create Data Pipeline¶

We will create a data pipeline that will be used to train and evaluate the model. For each dataset, we will:

1. Load the dataset via hk.DatasetFactory
2. Split the dataset patients into training and validation sets
3. Load the corresponding dataloader via hk.DataloaderFactory and create a tf.data.Dataset for training and validation

Once each dataset has a pair of training and validation datasets, we will combine them into a single training and validation dataset. At this point we will then extend the pipeline by adding the following:

1. Shuffle the dataset (if training)
2. Batch the dataset
3. Apply augmentations/preprocessing (if any)
4. Prefetch the dataset

Lastly, for the validation set will cache which will (1) speed up the evaluation process and (2) ensure that the same validation set is used for each epoch with fixed size.

In [8]:

def create_data_pipeline(
    ds: tf.data.Dataset,
    sampling_rate: int,
    batch_size: int,
    buffer_size: int | None = None,
    augmentations: list[hk.NamedParams] | None = None,
) -> tf.data.Dataset:
    """Transforms a dataset into a pipeline with augmentations.

    Args:
        ds(tf.data.Dataset): Input dataset.
        sampling_rate(int): Sampling rate of the dataset.
        batch_size(int): Batch size.
        buffer_size(int | None): Buffer size for shuffling.
        augmentations(list[hk.NamedParams] | None): List of augmentations to apply.

    Returns:
        tf.data.Dataset: Augmented dataset
    """
    if buffer_size:
        ds = ds.shuffle(
            buffer_size=buffer_size,
            reshuffle_each_iteration=True,
        )
    if batch_size:
        ds = ds.batch(
            batch_size=batch_size,
            drop_remainder=True,
            num_parallel_calls=tf.data.AUTOTUNE,
        )
    augmenter = hk.datasets.create_augmentation_pipeline(
        augmentations,
        sampling_rate=sampling_rate
    )

    ds = (
        ds.map(
            lambda data, labels: {
                "data": tf.cast(data, "float32"),
                "labels": tf.cast(labels, "float32"),
            },
            num_parallel_calls=tf.data.AUTOTUNE,
        )
        .map(
            augmenter,
            num_parallel_calls=tf.data.AUTOTUNE,
        )
        .map(
            lambda data: (data["data"], data["labels"]),
            num_parallel_calls=tf.data.AUTOTUNE,
        )
    )
    return ds.prefetch(tf.data.AUTOTUNE)

def load_train_datasets(
    datasets: list[hk.HKDataset],
    dataloaderFactory: nse.utils.ItemFactory[hk.HKDataloader],
    params: hk.HKTaskParams,
) -> tuple[tf.data.Dataset, tf.data.Dataset]:
    """Loads training and validation datasets.

    Args:
        datasets(list[hk.HKDataset]): List of datasets to load.
        dataloaderFactory(nse.utils.ItemFactory[hk.HKDataloader]): Factory to create dataloaders.
        params(hk.HKTaskParams): Task parameters.

    Returns:
        tuple[tf.data.Dataset, tf.data.Dataset]: Training and validation datasets.
    """

    # This will load each dataset/dataloader, split subjects, and merge into single tf.data.Dataset
    train_ds, val_ds = hk.tasks.utils.load_train_dataloader_split(datasets, params, factory=DataloaderFactory)

    # Create training and validation pipelines
    train_ds = create_data_pipeline(
        ds=train_ds,
        sampling_rate=params.sampling_rate,
        batch_size=params.batch_size,
        buffer_size=params.buffer_size,
        augmentations=params.augmentations + params.preprocesses,
    )

    val_ds = create_data_pipeline(
        ds=val_ds,
        sampling_rate=params.sampling_rate,
        batch_size=params.batch_size,
        augmentations=params.preprocesses,
    )

    # Cache validation dataset
    val_steps_per_epoch = params.val_size // params.batch_size if params.val_size else params.val_steps_per_epoch
    val_steps_per_epoch = val_steps_per_epoch or 50
    val_ds = val_ds.take(val_steps_per_epoch).cache()

    return train_ds, val_ds

def create_data_pipeline( ds: tf.data.Dataset, sampling_rate: int, batch_size: int, buffer_size: int | None = None, augmentations: list[hk.NamedParams] | None = None, ) -> tf.data.Dataset: """Transforms a dataset into a pipeline with augmentations. Args: ds(tf.data.Dataset): Input dataset. sampling_rate(int): Sampling rate of the dataset. batch_size(int): Batch size. buffer_size(int | None): Buffer size for shuffling. augmentations(list[hk.NamedParams] | None): List of augmentations to apply. Returns: tf.data.Dataset: Augmented dataset """ if buffer_size: ds = ds.shuffle( buffer_size=buffer_size, reshuffle_each_iteration=True, ) if batch_size: ds = ds.batch( batch_size=batch_size, drop_remainder=True, num_parallel_calls=tf.data.AUTOTUNE, ) augmenter = hk.datasets.create_augmentation_pipeline( augmentations, sampling_rate=sampling_rate ) ds = ( ds.map( lambda data, labels: { "data": tf.cast(data, "float32"), "labels": tf.cast(labels, "float32"), }, num_parallel_calls=tf.data.AUTOTUNE, ) .map( augmenter, num_parallel_calls=tf.data.AUTOTUNE, ) .map( lambda data: (data["data"], data["labels"]), num_parallel_calls=tf.data.AUTOTUNE, ) ) return ds.prefetch(tf.data.AUTOTUNE) def load_train_datasets( datasets: list[hk.HKDataset], dataloaderFactory: nse.utils.ItemFactory[hk.HKDataloader], params: hk.HKTaskParams, ) -> tuple[tf.data.Dataset, tf.data.Dataset]: """Loads training and validation datasets. Args: datasets(list[hk.HKDataset]): List of datasets to load. dataloaderFactory(nse.utils.ItemFactory[hk.HKDataloader]): Factory to create dataloaders. params(hk.HKTaskParams): Task parameters. Returns: tuple[tf.data.Dataset, tf.data.Dataset]: Training and validation datasets. """ # This will load each dataset/dataloader, split subjects, and merge into single tf.data.Dataset train_ds, val_ds = hk.tasks.utils.load_train_dataloader_split(datasets, params, factory=DataloaderFactory) # Create training and validation pipelines train_ds = create_data_pipeline( ds=train_ds, sampling_rate=params.sampling_rate, batch_size=params.batch_size, buffer_size=params.buffer_size, augmentations=params.augmentations + params.preprocesses, ) val_ds = create_data_pipeline( ds=val_ds, sampling_rate=params.sampling_rate, batch_size=params.batch_size, augmentations=params.preprocesses, ) # Cache validation dataset val_steps_per_epoch = params.val_size // params.batch_size if params.val_size else params.val_steps_per_epoch val_steps_per_epoch = val_steps_per_epoch or 50 val_ds = val_ds.take(val_steps_per_epoch).cache() return train_ds, val_ds

3. Create task routines¶

We will create a task that will predict heart rate from raw ECG signal. The task will have the following modes:

1. train: Train the model
2. evaluate: Evaluate the model

In [9]:

def train(params: hk.HKTaskParams):
    """Train  model

    Args:
        params (hk.HKTaskParams): Training parameters
    """
    os.makedirs(params.job_dir, exist_ok=True)

    logger = nse.utils.setup_logger(__name__, level=params.verbose, file_path=params.job_dir / "train.log")
    logger.debug(f"Creating working directory in {params.job_dir}")

    params.seed = nse.utils.set_random_seed(params.seed)
    logger.debug(f"Random seed {params.seed}")

    with open(params.job_dir / "train_config.json", "w", encoding="utf-8") as fp:
        fp.write(params.model_dump_json(indent=2))

    params.num_classes = 1 # Regression
    feat_shape = (params.frame_size, 1)

    datasets = [hk.DatasetFactory.get(ds.name)(**ds.params) for ds in params.datasets]

    train_ds, val_ds = load_train_datasets(
        datasets=datasets,
        dataloaderFactory=DataloaderFactory,
        params=params
    )

    y_true = np.concatenate([y for _, y in val_ds.as_numpy_iterator()])
    y_true = np.argmax(y_true, axis=-1).flatten()

    inputs = keras.Input(shape=feat_shape, name="input", dtype="float32")

    # Load existing model
    if params.resume and params.model_file:
        logger.debug(f"Loading model from file {params.model_file}")
        model = nse.models.load_model(params.model_file)
        params.model_file = None
    else:
        logger.debug("Creating model from scratch")
        if params.architecture is None:
            raise ValueError("Model architecture must be specified")
        model = hk.ModelFactory.get(params.architecture.name)(
            inputs=inputs,
            params=params.architecture.params,
            num_classes=params.num_classes,
        )
    # END IF

    flops = nse.metrics.flops.get_flops(model, batch_size=1, fpath=params.job_dir / "model_flops.log")

    t_mul = 1
    first_steps = (params.steps_per_epoch * params.epochs) / (np.power(params.lr_cycles, t_mul) - t_mul + 1)
    scheduler = keras.optimizers.schedules.CosineDecayRestarts(
        initial_learning_rate=params.lr_rate,
        first_decay_steps=np.ceil(first_steps),
        t_mul=t_mul,
        m_mul=0.5,
    )

    optimizer = keras.optimizers.Adam(scheduler)
    loss = keras.losses.MeanSquaredError()
    metrics = [
        keras.metrics.MeanAbsoluteError(name="mae"),
        keras.metrics.MeanSquaredError(name="mse"),
        keras.metrics.R2Score(name="rsq"),
    ]

    if params.model_file is None:
        params.model_file = params.job_dir / "model.keras"

    model.compile(optimizer=optimizer, loss=loss, metrics=metrics)
    logger.debug(f"Model requires {flops/1e6:0.2f} MFLOPS")

    model_callbacks = [
        keras.callbacks.EarlyStopping(
            monitor=f"val_{params.val_metric}",
            patience=max(int(0.25 * params.epochs), 1),
            mode="max" if params.val_metric == "f1" else "auto",
            restore_best_weights=True,
            verbose=min(params.verbose - 1, 1),
        ),
        keras.callbacks.ModelCheckpoint(
            filepath=str(params.model_file),
            monitor=f"val_{params.val_metric}",
            save_best_only=True,
            mode="max" if params.val_metric == "f1" else "auto",
            verbose=min(params.verbose - 1, 1),
        ),
        keras.callbacks.CSVLogger(params.job_dir / "history.csv"),
    ]

    history = model.fit(
        train_ds,
        steps_per_epoch=params.steps_per_epoch,
        verbose=params.verbose,
        epochs=params.epochs,
        validation_data=val_ds,
        callbacks=model_callbacks,
    )
    logger.debug(f"Model saved to {params.model_file}")

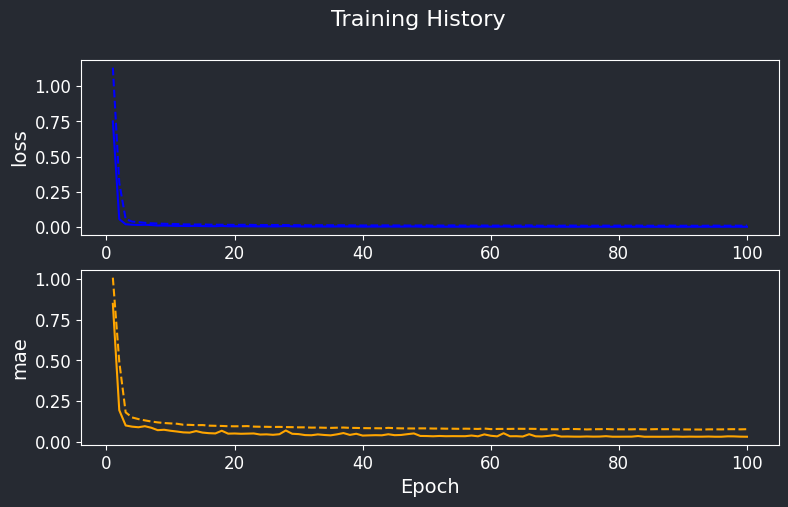

    nse.plotting.plot_history_metrics(
        history.history,
        metrics=["loss", metrics[0].name],
        save_path=params.job_dir / "history.png",
        title="Training History",
        stack=True,
        figsize=(9, 5),
    )

    # Summarize results
    rst = model.evaluate(val_ds, return_dict=True)
    logger.info(f"[VAL SET] " + ", ".join(f"{k.upper()}={v:.4f}" for k, v in rst.items()))

def train(params: hk.HKTaskParams): """Train model Args: params (hk.HKTaskParams): Training parameters """ os.makedirs(params.job_dir, exist_ok=True) logger = nse.utils.setup_logger(__name__, level=params.verbose, file_path=params.job_dir / "train.log") logger.debug(f"Creating working directory in {params.job_dir}") params.seed = nse.utils.set_random_seed(params.seed) logger.debug(f"Random seed {params.seed}") with open(params.job_dir / "train_config.json", "w", encoding="utf-8") as fp: fp.write(params.model_dump_json(indent=2)) params.num_classes = 1 # Regression feat_shape = (params.frame_size, 1) datasets = [hk.DatasetFactory.get(ds.name)(**ds.params) for ds in params.datasets] train_ds, val_ds = load_train_datasets( datasets=datasets, dataloaderFactory=DataloaderFactory, params=params ) y_true = np.concatenate([y for _, y in val_ds.as_numpy_iterator()]) y_true = np.argmax(y_true, axis=-1).flatten() inputs = keras.Input(shape=feat_shape, name="input", dtype="float32") # Load existing model if params.resume and params.model_file: logger.debug(f"Loading model from file {params.model_file}") model = nse.models.load_model(params.model_file) params.model_file = None else: logger.debug("Creating model from scratch") if params.architecture is None: raise ValueError("Model architecture must be specified") model = hk.ModelFactory.get(params.architecture.name)( inputs=inputs, params=params.architecture.params, num_classes=params.num_classes, ) # END IF flops = nse.metrics.flops.get_flops(model, batch_size=1, fpath=params.job_dir / "model_flops.log") t_mul = 1 first_steps = (params.steps_per_epoch * params.epochs) / (np.power(params.lr_cycles, t_mul) - t_mul + 1) scheduler = keras.optimizers.schedules.CosineDecayRestarts( initial_learning_rate=params.lr_rate, first_decay_steps=np.ceil(first_steps), t_mul=t_mul, m_mul=0.5, ) optimizer = keras.optimizers.Adam(scheduler) loss = keras.losses.MeanSquaredError() metrics = [ keras.metrics.MeanAbsoluteError(name="mae"), keras.metrics.MeanSquaredError(name="mse"), keras.metrics.R2Score(name="rsq"), ] if params.model_file is None: params.model_file = params.job_dir / "model.keras" model.compile(optimizer=optimizer, loss=loss, metrics=metrics) logger.debug(f"Model requires {flops/1e6:0.2f} MFLOPS") model_callbacks = [ keras.callbacks.EarlyStopping( monitor=f"val_{params.val_metric}", patience=max(int(0.25 * params.epochs), 1), mode="max" if params.val_metric == "f1" else "auto", restore_best_weights=True, verbose=min(params.verbose - 1, 1), ), keras.callbacks.ModelCheckpoint( filepath=str(params.model_file), monitor=f"val_{params.val_metric}", save_best_only=True, mode="max" if params.val_metric == "f1" else "auto", verbose=min(params.verbose - 1, 1), ), keras.callbacks.CSVLogger(params.job_dir / "history.csv"), ] history = model.fit( train_ds, steps_per_epoch=params.steps_per_epoch, verbose=params.verbose, epochs=params.epochs, validation_data=val_ds, callbacks=model_callbacks, ) logger.debug(f"Model saved to {params.model_file}") nse.plotting.plot_history_metrics( history.history, metrics=["loss", metrics[0].name], save_path=params.job_dir / "history.png", title="Training History", stack=True, figsize=(9, 5), ) # Summarize results rst = model.evaluate(val_ds, return_dict=True) logger.info(f"[VAL SET] " + ", ".join(f"{k.upper()}={v:.4f}" for k, v in rst.items()))

In [10]:

def evaluate(params:hk.HKTaskParams):
    """Evaluate model

    Args:
        params (HKTaskParams): Evaluation parameters
    """
    os.makedirs(params.job_dir, exist_ok=True)
    logger = nse.utils.setup_logger(__name__, level=params.verbose, file_path=params.job_dir / "test.log")
    logger.debug(f"Creating working directory in {params.job_dir}")

    params.seed = nse.utils.set_random_seed(params.seed)
    logger.debug(f"Random seed {params.seed}")

    datasets = [hk.DatasetFactory.get(ds.name)(**ds.params) for ds in params.datasets]

    _, test_ds = load_train_datasets(
        datasets=datasets,
        dataloaderFactory=DataloaderFactory,
        params=params
    )
    test_x = np.concatenate([x for x, _ in test_ds.as_numpy_iterator()])
    test_y = np.concatenate([y for _, y in test_ds.as_numpy_iterator()])

    logger.debug("Loading model")
    model = nse.models.load_model(params.model_file)

    logger.debug("Performing inference")
    rst = model.evaluate(test_ds, verbose=params.verbose, return_dict=True)
    logger.info("[TEST SET] " + ", ".join([f"{k.upper()}={v:.2%}" for k, v in rst.items()]))

    y_pred = model.predict(test_x)

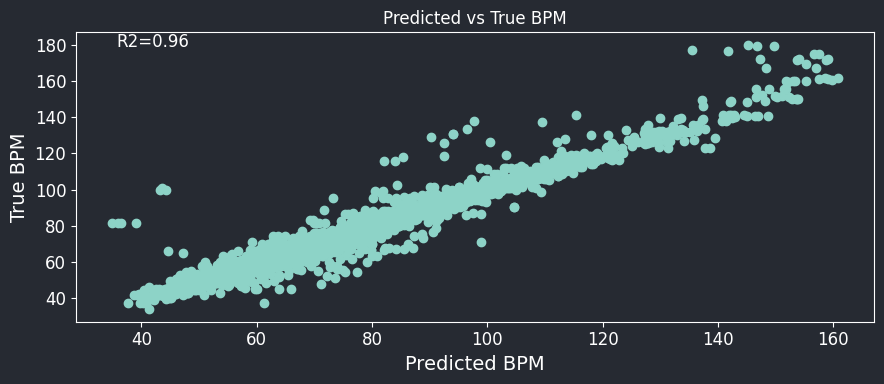

    fig, ax = plt.subplots(nrows=1, ncols=1, figsize=(9, 4))
    ax.scatter(y_pred*60, test_y*60)
    ax.set_title("Predicted vs True BPM")
    ax.set_xlabel("Predicted BPM")
    ax.set_ylabel("True BPM")
    ax.annotate(f"R2={rst['rsq']:.2f}", xy=(0.05, 0.95), xycoords='axes fraction')

    fig.tight_layout()
    fig.show()
    fig.savefig(params.job_dir / "bpm_plot.png")

def evaluate(params:hk.HKTaskParams): """Evaluate model Args: params (HKTaskParams): Evaluation parameters """ os.makedirs(params.job_dir, exist_ok=True) logger = nse.utils.setup_logger(__name__, level=params.verbose, file_path=params.job_dir / "test.log") logger.debug(f"Creating working directory in {params.job_dir}") params.seed = nse.utils.set_random_seed(params.seed) logger.debug(f"Random seed {params.seed}") datasets = [hk.DatasetFactory.get(ds.name)(**ds.params) for ds in params.datasets] _, test_ds = load_train_datasets( datasets=datasets, dataloaderFactory=DataloaderFactory, params=params ) test_x = np.concatenate([x for x, _ in test_ds.as_numpy_iterator()]) test_y = np.concatenate([y for _, y in test_ds.as_numpy_iterator()]) logger.debug("Loading model") model = nse.models.load_model(params.model_file) logger.debug("Performing inference") rst = model.evaluate(test_ds, verbose=params.verbose, return_dict=True) logger.info("[TEST SET] " + ", ".join([f"{k.upper()}={v:.2%}" for k, v in rst.items()])) y_pred = model.predict(test_x) fig, ax = plt.subplots(nrows=1, ncols=1, figsize=(9, 4)) ax.scatter(y_pred*60, test_y*60) ax.set_title("Predicted vs True BPM") ax.set_xlabel("Predicted BPM") ax.set_ylabel("True BPM") ax.annotate(f"R2={rst['rsq']:.2f}", xy=(0.05, 0.95), xycoords='axes fraction') fig.tight_layout() fig.show() fig.savefig(params.job_dir / "bpm_plot.png")

Create HeartRateTask class and register it to the factory¶

In [11]:

class HeartRateTask(hk.HKTask):
    @staticmethod
    def train(params: hk.HKTaskParams):
        train(params)

    @staticmethod
    def evaluate(params: hk.HKTaskParams):
        evaluate(params)

    @staticmethod
    def export(params: hk.HKTaskParams) -> None:
        raise NotImplementedError("Export not implemented")

    @staticmethod
    def demo(params: hk.HKTaskParams) -> None:
        raise NotImplementedError("Demo not implemented")

class HeartRateTask(hk.HKTask): @staticmethod def train(params: hk.HKTaskParams): train(params) @staticmethod def evaluate(params: hk.HKTaskParams): evaluate(params) @staticmethod def export(params: hk.HKTaskParams) -> None: raise NotImplementedError("Export not implemented") @staticmethod def demo(params: hk.HKTaskParams) -> None: raise NotImplementedError("Demo not implemented")

In [12]:

hk.TaskFactory.register("heartrate", HeartRateTask)

hk.TaskFactory.register("heartrate", HeartRateTask)

In [13]:

for task_name in hk.TaskFactory.list():
    print(task_name)

for task_name in hk.TaskFactory.list(): print(task_name)

rhythm
beat
segmentation
diagnostic
denoise
foundation
translate
heartrate

4. Let's test out the new task!¶

First we will create a task configuration with the following features:

• Frame Size: 8 seconds
• Dataset: PTB-XL
• Model: EfficientNetV2 with 4 MBConv blocks each depth 1
• Batch Size: 256
• Buffer Size: 20,000
• Learning Rate: 1e-3
• Preprocess: Z-score normalization

In [14]:

params = hk.HKTaskParams(
    name="BYOT-HR",
    job_dir=Path(tempfile.gettempdir()) / "hk-byot-hr",
    verbose=1,
    datasets=[
        hk.NamedParams(
            name="ptbxl",
            params=dict(
                path=Path(os.environ["HK_DATASET_PATH"]) / "ptbxl",
            ),
        ),
    ],
    frame_size=4000,  # 8 seconds
    sampling_rate=500,  # 500Hz
    samples_per_patient=5,
    val_samples_per_patient=5,
    val_patients=0.2,
    val_size=10000,
    batch_size=256,
    buffer_size=20000,
    epochs=100,
    steps_per_epoch=50,
    lr_rate=1e-3,
    lr_cycles=1,
    val_metric="loss",
    preprocesses=[
        hk.NamedParams(
            name="layer_norm",
            params=dict(
                epsilon=0.01,
                name="znorm"
            ),
        ),
    ],
    augmentations=[],
    architecture=hk.NamedParams(
        name="efficientnetv2",
        params=dict(
            input_filters=8,
            input_kernel_size=[1, 9],
            input_strides=[1, 2],
            blocks=[
                {"filters": 16, "depth": 1, "kernel_size": [1, 9], "strides": [1, 2], "ex_ratio": 1,  "se_ratio": 2},
                {"filters": 24, "depth": 1, "kernel_size": [1, 9], "strides": [1, 2], "ex_ratio": 1,  "se_ratio": 2},
                {"filters": 32, "depth": 1, "kernel_size": [1, 9], "strides": [1, 2], "ex_ratio": 1,  "se_ratio": 2},
                {"filters": 40, "depth": 1, "kernel_size": [1, 9], "strides": [1, 2], "ex_ratio": 1,  "se_ratio": 2}
            ],
            output_filters=0,
            include_top=True,
            use_logits=True
        ),
    ),
)

params = hk.HKTaskParams( name="BYOT-HR", job_dir=Path(tempfile.gettempdir()) / "hk-byot-hr", verbose=1, datasets=[ hk.NamedParams( name="ptbxl", params=dict( path=Path(os.environ["HK_DATASET_PATH"]) / "ptbxl", ), ), ], frame_size=4000, # 8 seconds sampling_rate=500, # 500Hz samples_per_patient=5, val_samples_per_patient=5, val_patients=0.2, val_size=10000, batch_size=256, buffer_size=20000, epochs=100, steps_per_epoch=50, lr_rate=1e-3, lr_cycles=1, val_metric="loss", preprocesses=[ hk.NamedParams( name="layer_norm", params=dict( epsilon=0.01, name="znorm" ), ), ], augmentations=[], architecture=hk.NamedParams( name="efficientnetv2", params=dict( input_filters=8, input_kernel_size=[1, 9], input_strides=[1, 2], blocks=[ {"filters": 16, "depth": 1, "kernel_size": [1, 9], "strides": [1, 2], "ex_ratio": 1, "se_ratio": 2}, {"filters": 24, "depth": 1, "kernel_size": [1, 9], "strides": [1, 2], "ex_ratio": 1, "se_ratio": 2}, {"filters": 32, "depth": 1, "kernel_size": [1, 9], "strides": [1, 2], "ex_ratio": 1, "se_ratio": 2}, {"filters": 40, "depth": 1, "kernel_size": [1, 9], "strides": [1, 2], "ex_ratio": 1, "se_ratio": 2} ], output_filters=0, include_top=True, use_logits=True ), ), )

In [19]:

task = hk.TaskFactory.get("heartrate")

task = hk.TaskFactory.get("heartrate")

Train the model¶

In [15]:

task.train(params)

task.train(params)

WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
I0000 00:00:1723822309.458226  626139 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723822309.478233  626139 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723822309.478319  626139 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723822309.479299  626139 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723822309.479375  626139 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723822309.479420  626139 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723822309.529037  626139 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723822309.529123  626139 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723822309.529179  626139 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355

Epoch 1/100

WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
I0000 00:00:1723822323.031206  626304 service.cc:146] XLA service 0x7471ec02c0b0 initialized for platform CUDA (this does not guarantee that XLA will be used). Devices:
I0000 00:00:1723822323.031237  626304 service.cc:154]   StreamExecutor device (0): NVIDIA GeForce RTX 4090, Compute Capability 8.9

 5/50 ━━━━━━━━━━━━━━━━━━━━ 1s 34ms/step - loss: 1.8535 - mae: 1.2239 - mse: 1.8535 - rsq: -20.3693

I0000 00:00:1723822328.955479  626304 device_compiler.h:188] Compiled cluster using XLA!  This line is logged at most once for the lifetime of the process.

50/50 ━━━━━━━━━━━━━━━━━━━━ 17s 55ms/step - loss: 1.4214 - mae: 1.1194 - mse: 1.4214 - rsq: -16.4093 - val_loss: 0.7500 - val_mae: 0.8469 - val_mse: 0.7500 - val_rsq: -8.4336
Epoch 2/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 37ms/step - loss: 0.4457 - mae: 0.6133 - mse: 0.4457 - rsq: -4.2974 - val_loss: 0.0573 - val_mae: 0.1936 - val_mse: 0.0573 - val_rsq: 0.2792
Epoch 3/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 4s 87ms/step - loss: 0.0722 - mae: 0.2064 - mse: 0.0722 - rsq: 0.0739 - val_loss: 0.0206 - val_mae: 0.0998 - val_mse: 0.0206 - val_rsq: 0.7403
Epoch 4/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 5s 92ms/step - loss: 0.0411 - mae: 0.1526 - mse: 0.0411 - rsq: 0.4376 - val_loss: 0.0178 - val_mae: 0.0924 - val_mse: 0.0178 - val_rsq: 0.7758
Epoch 5/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 46ms/step - loss: 0.0388 - mae: 0.1436 - mse: 0.0388 - rsq: 0.5175 - val_loss: 0.0161 - val_mae: 0.0889 - val_mse: 0.0161 - val_rsq: 0.7972
Epoch 6/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0316 - mae: 0.1323 - mse: 0.0316 - rsq: 0.5965 - val_loss: 0.0173 - val_mae: 0.0953 - val_mse: 0.0173 - val_rsq: 0.7820
Epoch 7/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 36ms/step - loss: 0.0287 - mae: 0.1265 - mse: 0.0287 - rsq: 0.6291 - val_loss: 0.0152 - val_mae: 0.0857 - val_mse: 0.0152 - val_rsq: 0.8089
Epoch 8/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0266 - mae: 0.1204 - mse: 0.0266 - rsq: 0.6571 - val_loss: 0.0115 - val_mae: 0.0709 - val_mse: 0.0115 - val_rsq: 0.8550
Epoch 9/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0251 - mae: 0.1161 - mse: 0.0251 - rsq: 0.6806 - val_loss: 0.0116 - val_mae: 0.0734 - val_mse: 0.0116 - val_rsq: 0.8537
Epoch 10/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0225 - mae: 0.1125 - mse: 0.0225 - rsq: 0.7156 - val_loss: 0.0104 - val_mae: 0.0672 - val_mse: 0.0104 - val_rsq: 0.8689
Epoch 11/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0235 - mae: 0.1115 - mse: 0.0235 - rsq: 0.7163 - val_loss: 0.0094 - val_mae: 0.0626 - val_mse: 0.0094 - val_rsq: 0.8821
Epoch 12/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0206 - mae: 0.1054 - mse: 0.0206 - rsq: 0.7445 - val_loss: 0.0088 - val_mae: 0.0573 - val_mse: 0.0088 - val_rsq: 0.8890
Epoch 13/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0209 - mae: 0.1055 - mse: 0.0209 - rsq: 0.7386 - val_loss: 0.0083 - val_mae: 0.0559 - val_mse: 0.0083 - val_rsq: 0.8951
Epoch 14/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0194 - mae: 0.1026 - mse: 0.0194 - rsq: 0.7589 - val_loss: 0.0095 - val_mae: 0.0653 - val_mse: 0.0095 - val_rsq: 0.8807
Epoch 15/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0201 - mae: 0.1032 - mse: 0.0201 - rsq: 0.7443 - val_loss: 0.0079 - val_mae: 0.0561 - val_mse: 0.0079 - val_rsq: 0.9010
Epoch 16/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0179 - mae: 0.0993 - mse: 0.0179 - rsq: 0.7775 - val_loss: 0.0071 - val_mae: 0.0524 - val_mse: 0.0071 - val_rsq: 0.9104
Epoch 17/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0176 - mae: 0.0985 - mse: 0.0176 - rsq: 0.7787 - val_loss: 0.0070 - val_mae: 0.0508 - val_mse: 0.0070 - val_rsq: 0.9126
Epoch 18/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0169 - mae: 0.0968 - mse: 0.0169 - rsq: 0.7807 - val_loss: 0.0092 - val_mae: 0.0673 - val_mse: 0.0092 - val_rsq: 0.8847
Epoch 19/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0167 - mae: 0.0959 - mse: 0.0167 - rsq: 0.7843 - val_loss: 0.0067 - val_mae: 0.0495 - val_mse: 0.0067 - val_rsq: 0.9155
Epoch 20/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0169 - mae: 0.0953 - mse: 0.0169 - rsq: 0.7864 - val_loss: 0.0066 - val_mae: 0.0505 - val_mse: 0.0066 - val_rsq: 0.9164
Epoch 21/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0164 - mae: 0.0944 - mse: 0.0164 - rsq: 0.7958 - val_loss: 0.0065 - val_mae: 0.0487 - val_mse: 0.0065 - val_rsq: 0.9185
Epoch 22/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0173 - mae: 0.0963 - mse: 0.0173 - rsq: 0.7887 - val_loss: 0.0064 - val_mae: 0.0497 - val_mse: 0.0064 - val_rsq: 0.9197
Epoch 23/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0158 - mae: 0.0935 - mse: 0.0158 - rsq: 0.7930 - val_loss: 0.0063 - val_mae: 0.0507 - val_mse: 0.0063 - val_rsq: 0.9203
Epoch 24/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 36ms/step - loss: 0.0150 - mae: 0.0926 - mse: 0.0150 - rsq: 0.8087 - val_loss: 0.0056 - val_mae: 0.0440 - val_mse: 0.0056 - val_rsq: 0.9297
Epoch 25/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0151 - mae: 0.0919 - mse: 0.0151 - rsq: 0.8020 - val_loss: 0.0057 - val_mae: 0.0452 - val_mse: 0.0057 - val_rsq: 0.9282
Epoch 26/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0153 - mae: 0.0909 - mse: 0.0153 - rsq: 0.8012 - val_loss: 0.0054 - val_mae: 0.0424 - val_mse: 0.0054 - val_rsq: 0.9324
Epoch 27/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0171 - mae: 0.0913 - mse: 0.0171 - rsq: 0.7825 - val_loss: 0.0056 - val_mae: 0.0461 - val_mse: 0.0056 - val_rsq: 0.9291
Epoch 28/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0148 - mae: 0.0891 - mse: 0.0148 - rsq: 0.8121 - val_loss: 0.0084 - val_mae: 0.0690 - val_mse: 0.0084 - val_rsq: 0.8945
Epoch 29/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0152 - mae: 0.0902 - mse: 0.0152 - rsq: 0.8177 - val_loss: 0.0057 - val_mae: 0.0487 - val_mse: 0.0057 - val_rsq: 0.9284
Epoch 30/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0142 - mae: 0.0892 - mse: 0.0142 - rsq: 0.8188 - val_loss: 0.0054 - val_mae: 0.0467 - val_mse: 0.0054 - val_rsq: 0.9321
Epoch 31/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0139 - mae: 0.0886 - mse: 0.0139 - rsq: 0.8321 - val_loss: 0.0047 - val_mae: 0.0407 - val_mse: 0.0047 - val_rsq: 0.9409
Epoch 32/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 36ms/step - loss: 0.0133 - mae: 0.0868 - mse: 0.0133 - rsq: 0.8310 - val_loss: 0.0045 - val_mae: 0.0397 - val_mse: 0.0045 - val_rsq: 0.9435
Epoch 33/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0138 - mae: 0.0869 - mse: 0.0138 - rsq: 0.8214 - val_loss: 0.0052 - val_mae: 0.0449 - val_mse: 0.0052 - val_rsq: 0.9352
Epoch 34/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0140 - mae: 0.0856 - mse: 0.0140 - rsq: 0.8197 - val_loss: 0.0047 - val_mae: 0.0414 - val_mse: 0.0047 - val_rsq: 0.9404
Epoch 35/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0150 - mae: 0.0859 - mse: 0.0150 - rsq: 0.7989 - val_loss: 0.0046 - val_mae: 0.0390 - val_mse: 0.0046 - val_rsq: 0.9425
Epoch 36/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0136 - mae: 0.0861 - mse: 0.0136 - rsq: 0.8291 - val_loss: 0.0052 - val_mae: 0.0453 - val_mse: 0.0052 - val_rsq: 0.9344
Epoch 37/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0141 - mae: 0.0872 - mse: 0.0141 - rsq: 0.8245 - val_loss: 0.0057 - val_mae: 0.0532 - val_mse: 0.0057 - val_rsq: 0.9280
Epoch 38/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0138 - mae: 0.0863 - mse: 0.0138 - rsq: 0.8309 - val_loss: 0.0047 - val_mae: 0.0418 - val_mse: 0.0047 - val_rsq: 0.9413
Epoch 39/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0131 - mae: 0.0856 - mse: 0.0131 - rsq: 0.8344 - val_loss: 0.0052 - val_mae: 0.0488 - val_mse: 0.0052 - val_rsq: 0.9344
Epoch 40/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0123 - mae: 0.0835 - mse: 0.0123 - rsq: 0.8416 - val_loss: 0.0040 - val_mae: 0.0377 - val_mse: 0.0040 - val_rsq: 0.9494
Epoch 41/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0123 - mae: 0.0828 - mse: 0.0123 - rsq: 0.8364 - val_loss: 0.0042 - val_mae: 0.0390 - val_mse: 0.0042 - val_rsq: 0.9469
Epoch 42/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0120 - mae: 0.0822 - mse: 0.0120 - rsq: 0.8379 - val_loss: 0.0044 - val_mae: 0.0401 - val_mse: 0.0044 - val_rsq: 0.9446
Epoch 43/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0126 - mae: 0.0813 - mse: 0.0126 - rsq: 0.8329 - val_loss: 0.0042 - val_mae: 0.0394 - val_mse: 0.0042 - val_rsq: 0.9477
Epoch 44/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0127 - mae: 0.0849 - mse: 0.0127 - rsq: 0.8375 - val_loss: 0.0047 - val_mae: 0.0458 - val_mse: 0.0047 - val_rsq: 0.9415
Epoch 45/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0123 - mae: 0.0829 - mse: 0.0123 - rsq: 0.8482 - val_loss: 0.0041 - val_mae: 0.0402 - val_mse: 0.0041 - val_rsq: 0.9484
Epoch 46/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0127 - mae: 0.0831 - mse: 0.0127 - rsq: 0.8387 - val_loss: 0.0041 - val_mae: 0.0414 - val_mse: 0.0041 - val_rsq: 0.9480
Epoch 47/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0121 - mae: 0.0817 - mse: 0.0121 - rsq: 0.8436 - val_loss: 0.0047 - val_mae: 0.0465 - val_mse: 0.0047 - val_rsq: 0.9405
Epoch 48/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0117 - mae: 0.0819 - mse: 0.0117 - rsq: 0.8480 - val_loss: 0.0051 - val_mae: 0.0508 - val_mse: 0.0051 - val_rsq: 0.9359
Epoch 49/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0127 - mae: 0.0821 - mse: 0.0127 - rsq: 0.8452 - val_loss: 0.0037 - val_mae: 0.0354 - val_mse: 0.0037 - val_rsq: 0.9539
Epoch 50/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 36ms/step - loss: 0.0139 - mae: 0.0821 - mse: 0.0139 - rsq: 0.8199 - val_loss: 0.0036 - val_mae: 0.0349 - val_mse: 0.0036 - val_rsq: 0.9547
Epoch 51/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 36ms/step - loss: 0.0113 - mae: 0.0807 - mse: 0.0113 - rsq: 0.8632 - val_loss: 0.0034 - val_mae: 0.0334 - val_mse: 0.0034 - val_rsq: 0.9566
Epoch 52/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0116 - mae: 0.0798 - mse: 0.0116 - rsq: 0.8522 - val_loss: 0.0036 - val_mae: 0.0352 - val_mse: 0.0036 - val_rsq: 0.9543
Epoch 53/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0115 - mae: 0.0808 - mse: 0.0115 - rsq: 0.8621 - val_loss: 0.0034 - val_mae: 0.0338 - val_mse: 0.0034 - val_rsq: 0.9567
Epoch 54/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0144 - mae: 0.0808 - mse: 0.0144 - rsq: 0.8201 - val_loss: 0.0036 - val_mae: 0.0342 - val_mse: 0.0036 - val_rsq: 0.9553
Epoch 55/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0121 - mae: 0.0789 - mse: 0.0121 - rsq: 0.8478 - val_loss: 0.0034 - val_mae: 0.0340 - val_mse: 0.0034 - val_rsq: 0.9566
Epoch 56/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 36ms/step - loss: 0.0116 - mae: 0.0790 - mse: 0.0116 - rsq: 0.8607 - val_loss: 0.0034 - val_mae: 0.0339 - val_mse: 0.0034 - val_rsq: 0.9570
Epoch 57/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0113 - mae: 0.0799 - mse: 0.0113 - rsq: 0.8525 - val_loss: 0.0039 - val_mae: 0.0380 - val_mse: 0.0039 - val_rsq: 0.9514
Epoch 58/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0117 - mae: 0.0798 - mse: 0.0117 - rsq: 0.8543 - val_loss: 0.0034 - val_mae: 0.0332 - val_mse: 0.0034 - val_rsq: 0.9575
Epoch 59/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0125 - mae: 0.0825 - mse: 0.0125 - rsq: 0.8491 - val_loss: 0.0044 - val_mae: 0.0450 - val_mse: 0.0044 - val_rsq: 0.9451
Epoch 60/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0104 - mae: 0.0764 - mse: 0.0104 - rsq: 0.8624 - val_loss: 0.0037 - val_mae: 0.0366 - val_mse: 0.0037 - val_rsq: 0.9534
Epoch 61/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 37ms/step - loss: 0.0113 - mae: 0.0776 - mse: 0.0113 - rsq: 0.8535 - val_loss: 0.0034 - val_mae: 0.0329 - val_mse: 0.0034 - val_rsq: 0.9578
Epoch 62/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0113 - mae: 0.0774 - mse: 0.0113 - rsq: 0.8519 - val_loss: 0.0052 - val_mae: 0.0522 - val_mse: 0.0052 - val_rsq: 0.9342
Epoch 63/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 36ms/step - loss: 0.0110 - mae: 0.0786 - mse: 0.0110 - rsq: 0.8620 - val_loss: 0.0033 - val_mae: 0.0335 - val_mse: 0.0033 - val_rsq: 0.9579
Epoch 64/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0111 - mae: 0.0791 - mse: 0.0111 - rsq: 0.8581 - val_loss: 0.0034 - val_mae: 0.0338 - val_mse: 0.0034 - val_rsq: 0.9577
Epoch 65/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0116 - mae: 0.0799 - mse: 0.0116 - rsq: 0.8651 - val_loss: 0.0032 - val_mae: 0.0318 - val_mse: 0.0032 - val_rsq: 0.9595
Epoch 66/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0132 - mae: 0.0790 - mse: 0.0132 - rsq: 0.8365 - val_loss: 0.0046 - val_mae: 0.0461 - val_mse: 0.0046 - val_rsq: 0.9423
Epoch 67/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0116 - mae: 0.0802 - mse: 0.0116 - rsq: 0.8559 - val_loss: 0.0034 - val_mae: 0.0332 - val_mse: 0.0034 - val_rsq: 0.9571
Epoch 68/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0107 - mae: 0.0766 - mse: 0.0107 - rsq: 0.8577 - val_loss: 0.0033 - val_mae: 0.0323 - val_mse: 0.0033 - val_rsq: 0.9584
Epoch 69/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0107 - mae: 0.0775 - mse: 0.0107 - rsq: 0.8635 - val_loss: 0.0035 - val_mae: 0.0358 - val_mse: 0.0035 - val_rsq: 0.9559
Epoch 70/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0105 - mae: 0.0762 - mse: 0.0105 - rsq: 0.8693 - val_loss: 0.0039 - val_mae: 0.0406 - val_mse: 0.0039 - val_rsq: 0.9505
Epoch 71/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0106 - mae: 0.0766 - mse: 0.0106 - rsq: 0.8634 - val_loss: 0.0031 - val_mae: 0.0316 - val_mse: 0.0031 - val_rsq: 0.9605
Epoch 72/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0113 - mae: 0.0782 - mse: 0.0113 - rsq: 0.8529 - val_loss: 0.0032 - val_mae: 0.0320 - val_mse: 0.0032 - val_rsq: 0.9597
Epoch 73/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0109 - mae: 0.0779 - mse: 0.0109 - rsq: 0.8620 - val_loss: 0.0031 - val_mae: 0.0311 - val_mse: 0.0031 - val_rsq: 0.9610
Epoch 74/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0111 - mae: 0.0769 - mse: 0.0111 - rsq: 0.8636 - val_loss: 0.0031 - val_mae: 0.0310 - val_mse: 0.0031 - val_rsq: 0.9607
Epoch 75/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0102 - mae: 0.0758 - mse: 0.0102 - rsq: 0.8729 - val_loss: 0.0032 - val_mae: 0.0322 - val_mse: 0.0032 - val_rsq: 0.9595
Epoch 76/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 36ms/step - loss: 0.0107 - mae: 0.0772 - mse: 0.0107 - rsq: 0.8609 - val_loss: 0.0031 - val_mae: 0.0311 - val_mse: 0.0031 - val_rsq: 0.9613
Epoch 77/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0110 - mae: 0.0774 - mse: 0.0110 - rsq: 0.8658 - val_loss: 0.0031 - val_mae: 0.0316 - val_mse: 0.0031 - val_rsq: 0.9608
Epoch 78/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0105 - mae: 0.0768 - mse: 0.0105 - rsq: 0.8665 - val_loss: 0.0033 - val_mae: 0.0339 - val_mse: 0.0033 - val_rsq: 0.9589
Epoch 79/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0104 - mae: 0.0767 - mse: 0.0104 - rsq: 0.8677 - val_loss: 0.0030 - val_mae: 0.0307 - val_mse: 0.0030 - val_rsq: 0.9617
Epoch 80/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0112 - mae: 0.0775 - mse: 0.0112 - rsq: 0.8662 - val_loss: 0.0031 - val_mae: 0.0307 - val_mse: 0.0031 - val_rsq: 0.9608
Epoch 81/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0105 - mae: 0.0752 - mse: 0.0105 - rsq: 0.8626 - val_loss: 0.0031 - val_mae: 0.0310 - val_mse: 0.0031 - val_rsq: 0.9605
Epoch 82/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0111 - mae: 0.0774 - mse: 0.0111 - rsq: 0.8591 - val_loss: 0.0031 - val_mae: 0.0311 - val_mse: 0.0031 - val_rsq: 0.9606
Epoch 83/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0107 - mae: 0.0766 - mse: 0.0107 - rsq: 0.8632 - val_loss: 0.0034 - val_mae: 0.0348 - val_mse: 0.0034 - val_rsq: 0.9570
Epoch 84/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0098 - mae: 0.0748 - mse: 0.0098 - rsq: 0.8718 - val_loss: 0.0030 - val_mae: 0.0304 - val_mse: 0.0030 - val_rsq: 0.9619
Epoch 85/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0107 - mae: 0.0774 - mse: 0.0107 - rsq: 0.8723 - val_loss: 0.0030 - val_mae: 0.0306 - val_mse: 0.0030 - val_rsq: 0.9618
Epoch 86/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0103 - mae: 0.0771 - mse: 0.0103 - rsq: 0.8624 - val_loss: 0.0030 - val_mae: 0.0305 - val_mse: 0.0030 - val_rsq: 0.9621
Epoch 87/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0107 - mae: 0.0774 - mse: 0.0107 - rsq: 0.8680 - val_loss: 0.0030 - val_mae: 0.0305 - val_mse: 0.0030 - val_rsq: 0.9620
Epoch 88/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0118 - mae: 0.0769 - mse: 0.0118 - rsq: 0.8507 - val_loss: 0.0031 - val_mae: 0.0307 - val_mse: 0.0031 - val_rsq: 0.9615
Epoch 89/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0108 - mae: 0.0756 - mse: 0.0108 - rsq: 0.8602 - val_loss: 0.0031 - val_mae: 0.0315 - val_mse: 0.0031 - val_rsq: 0.9607
Epoch 90/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0099 - mae: 0.0748 - mse: 0.0099 - rsq: 0.8767 - val_loss: 0.0030 - val_mae: 0.0304 - val_mse: 0.0030 - val_rsq: 0.9620
Epoch 91/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0108 - mae: 0.0751 - mse: 0.0108 - rsq: 0.8638 - val_loss: 0.0031 - val_mae: 0.0312 - val_mse: 0.0031 - val_rsq: 0.9614
Epoch 92/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0101 - mae: 0.0752 - mse: 0.0101 - rsq: 0.8703 - val_loss: 0.0031 - val_mae: 0.0307 - val_mse: 0.0031 - val_rsq: 0.9615
Epoch 93/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0099 - mae: 0.0752 - mse: 0.0099 - rsq: 0.8730 - val_loss: 0.0031 - val_mae: 0.0309 - val_mse: 0.0031 - val_rsq: 0.9614
Epoch 94/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0105 - mae: 0.0759 - mse: 0.0105 - rsq: 0.8643 - val_loss: 0.0031 - val_mae: 0.0317 - val_mse: 0.0031 - val_rsq: 0.9605
Epoch 95/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0107 - mae: 0.0755 - mse: 0.0107 - rsq: 0.8700 - val_loss: 0.0030 - val_mae: 0.0306 - val_mse: 0.0030 - val_rsq: 0.9618
Epoch 96/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0110 - mae: 0.0761 - mse: 0.0110 - rsq: 0.8575 - val_loss: 0.0030 - val_mae: 0.0306 - val_mse: 0.0030 - val_rsq: 0.9617
Epoch 97/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0100 - mae: 0.0753 - mse: 0.0100 - rsq: 0.8757 - val_loss: 0.0033 - val_mae: 0.0330 - val_mse: 0.0033 - val_rsq: 0.9590
Epoch 98/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0113 - mae: 0.0770 - mse: 0.0113 - rsq: 0.8597 - val_loss: 0.0032 - val_mae: 0.0326 - val_mse: 0.0032 - val_rsq: 0.9595
Epoch 99/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 35ms/step - loss: 0.0112 - mae: 0.0760 - mse: 0.0112 - rsq: 0.8565 - val_loss: 0.0031 - val_mae: 0.0310 - val_mse: 0.0031 - val_rsq: 0.9612
Epoch 100/100
50/50 ━━━━━━━━━━━━━━━━━━━━ 2s 34ms/step - loss: 0.0122 - mae: 0.0779 - mse: 0.0122 - rsq: 0.8481 - val_loss: 0.0030 - val_mae: 0.0305 - val_mse: 0.0030 - val_rsq: 0.9618
39/39 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - loss: 0.0030 - mae: 0.0307 - mse: 0.0030 - rsq: 0.9639

INFO     [VAL SET] LOSS=0.0030, MAE=0.0305, MSE=0.0030, RSQ=0.9621                                3247659150.py:114

Finally we will evaluate the model¶

In [20]:

task.evaluate(params)

task.evaluate(params)

39/39 ━━━━━━━━━━━━━━━━━━━━ 1s 3ms/step - loss: 0.0030 - mae: 0.0307 - mse: 0.0030 - rsq: 0.9639

INFO     [TEST SET] LOSS=0.30%, MAE=3.05%, MSE=0.30%, RSQ=96.21%                                   3848634147.py:29

312/312 ━━━━━━━━━━━━━━━━━━━━ 1s 1ms/step

In [ ]:
