ECG Models (v1.1 exports)

ECG release artifacts and comparison lanes at 256 Hz using PTB-XL Lead II. The published HuggingFace bundles are RVQ neural codecs; the local golden registry also includes SPIHT DSP and hybrid AI+DSP lanes for standardized comparison.

Per-experiment reproduction pages

Each entry has a dedicated experiment page: ecg-rvq-2x · ecg-rvq-4x · ecg-rvq-8x · ecg-rvq-16x · ecg-rvq-32x · ecg-rvq-64x. Two-stage variants: ecg-rvq-4x-prior · ecg-rvq-8x-prior.

Historical RVQ results

The v1.1 bundles correct the exports of existing checkpoints without retraining. The tables below are historical physiological evaluations, not new measurements of the corrected deployment bundles. See release details for measured export parity and packet sizes.

These validation results and the noise-aware customer scorecards use different evaluation views. Keep the metric definitions and recording windows with the numbers when comparing results.

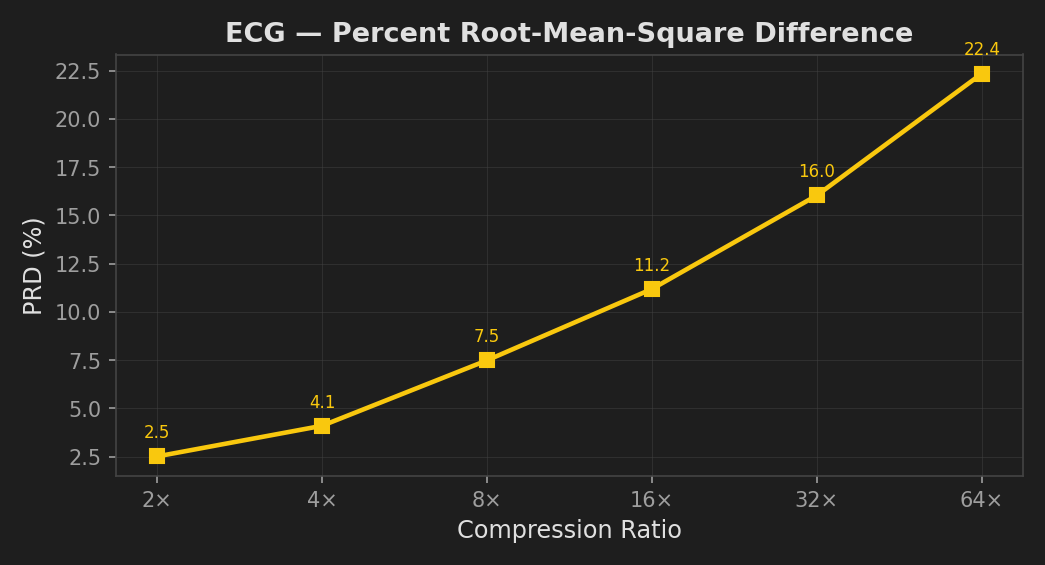

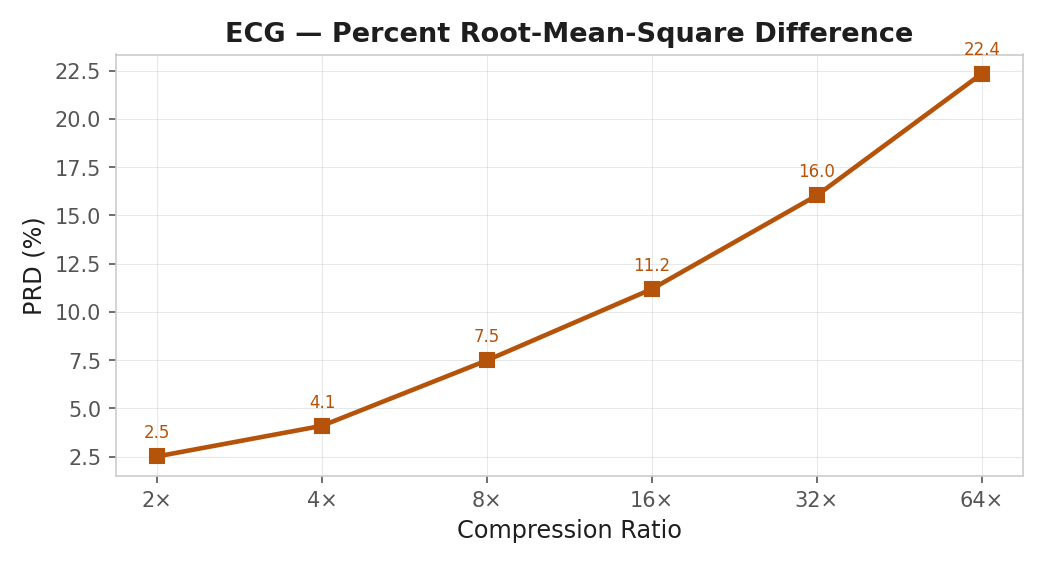

Model	Config	CR	PRD (%)	MSE	Cosine
ecg-rvq-02x	ecg_rvq_256hz_02x_golden.yaml	2.00×	2.50	0.000580	0.9997
ecg-rvq-04x	ecg_rvq_256hz_04x_golden.yaml	4.00×	4.09	0.001550	0.9992
ecg-rvq-08x	ecg_rvq_256hz_08x_golden.yaml	8.00×	7.48	0.005187	0.9972
ecg-rvq-16x	ecg_rvq_256hz_16x_golden.yaml	16.00×	11.18	0.011581	0.9936
ecg-rvq-32x	ecg_rvq_256hz_32x_golden.yaml	32.00×	16.04	0.023812	0.9868
ecg-rvq-64x	ecg_rvq_256hz_64x_golden.yaml	64.00×	22.35	0.046250	0.9742

All metrics are on the validation set.

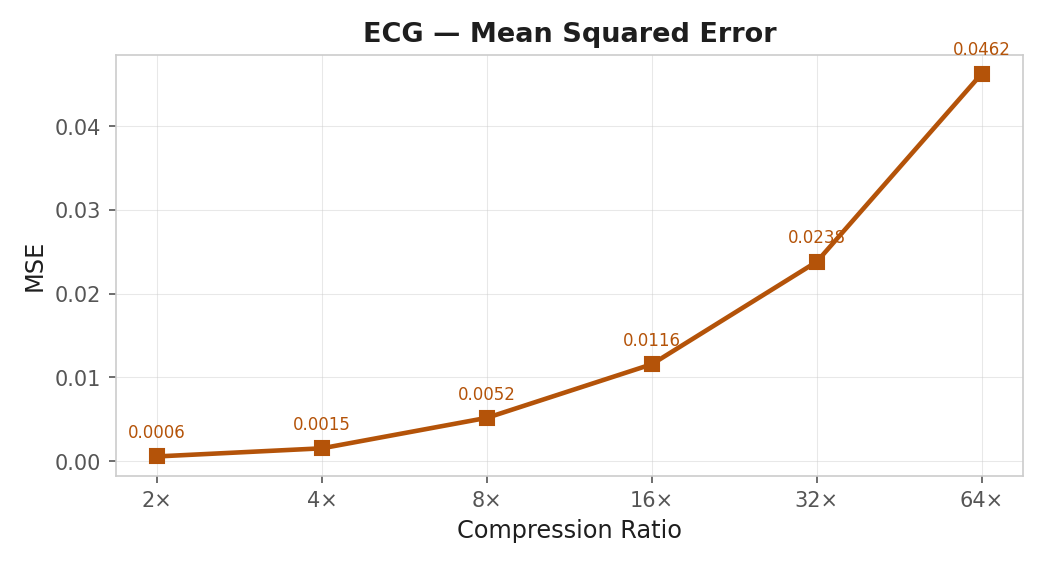

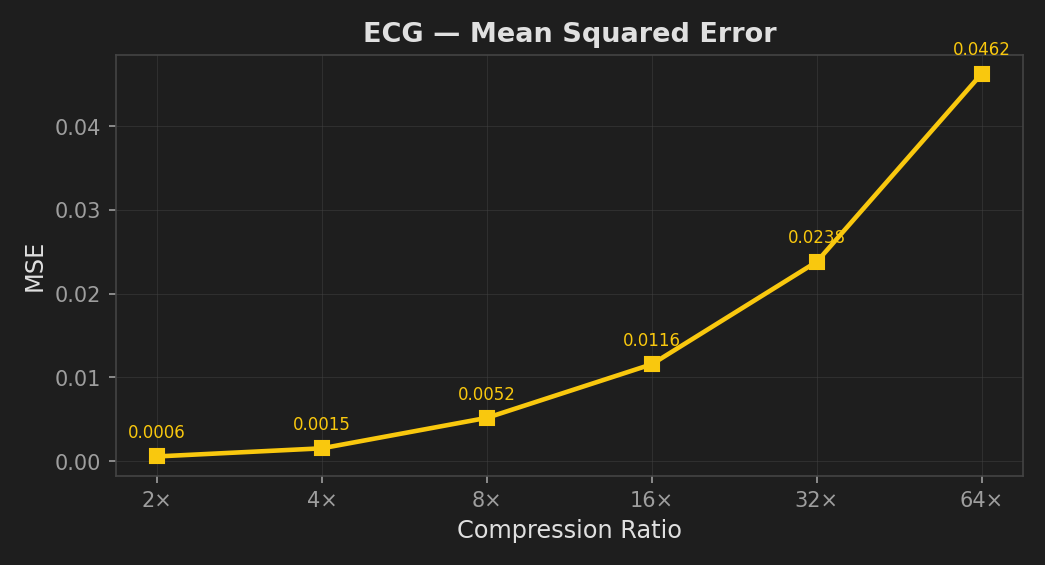

Mean squared error plots

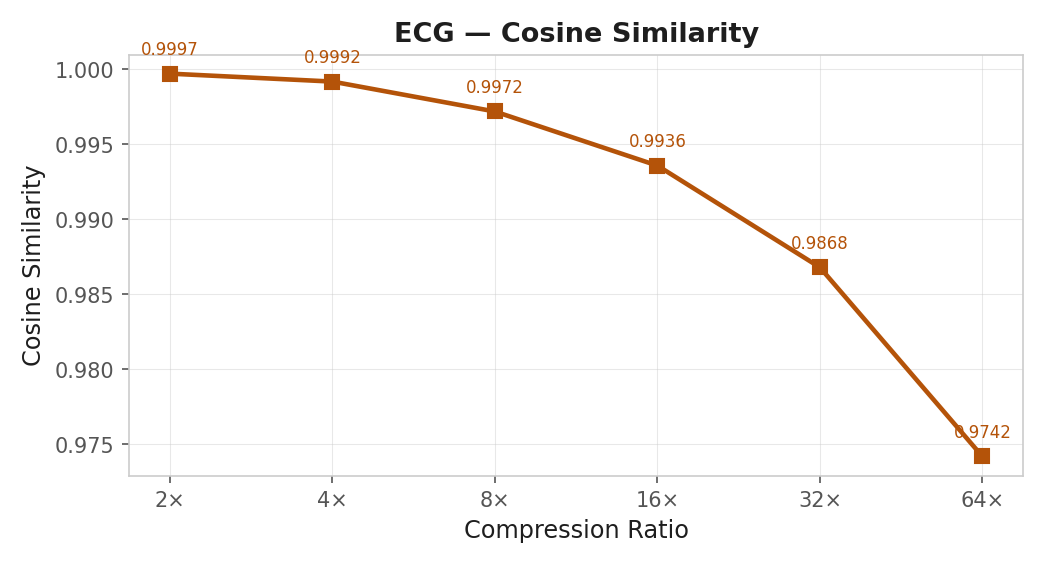

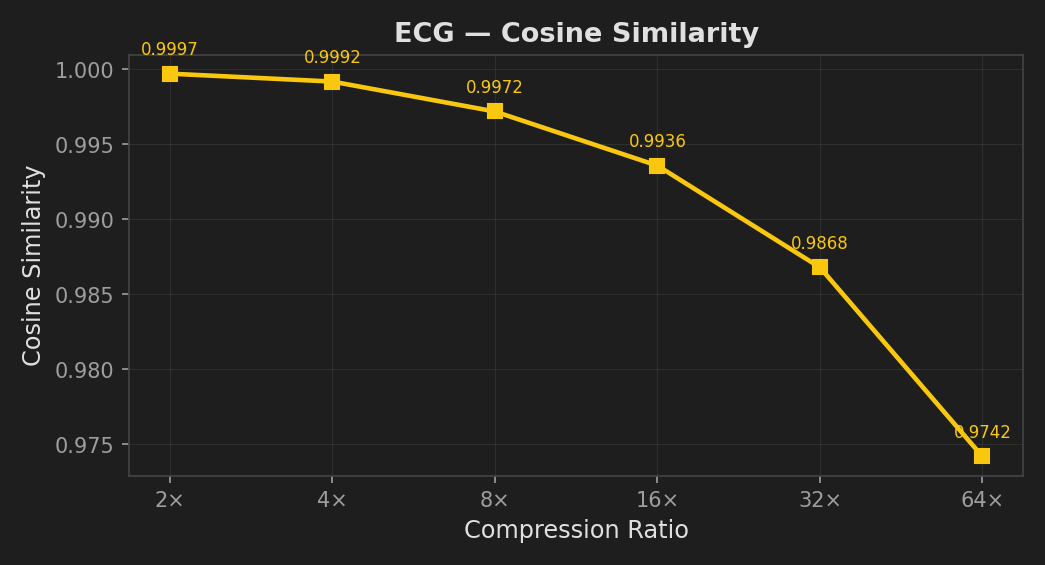

Cosine similarity plots

Codec tradeoffs under noise and artifacts

ECG has three release-facing comparison lanes:

Lane	Role	Current publication status
SPIHT	DSP faithfulness baseline; very strong on clean low-CR ECG morphology	Hugging Face package links on the experiment pages
RVQ	Published neural codec bundles; compact learned representation with ECG morphology scorecards	Published for 2x, 4x, 8x, 16x, 32x, and 64x
Hybrid	Learned denoising front end with a SPIHT backend; designed for empirical-noise and artifact regimes	Hugging Face package links on the experiment pages

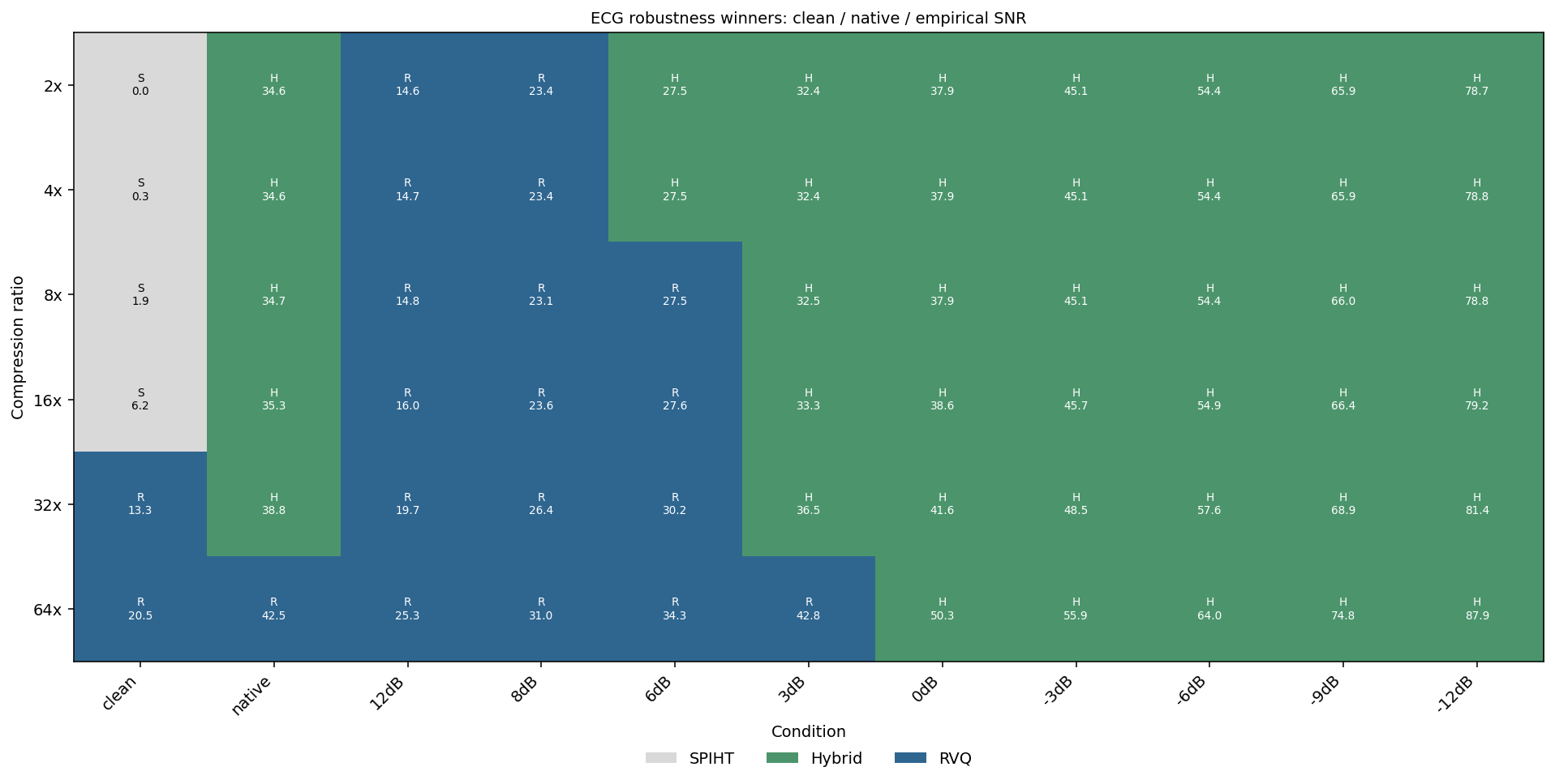

The robustness sweep scores each lane against a filtered clean-truth proxy after injecting empirical noise or additive ECG artifact families. Lower PRD is better. This complements the validation-set RVQ table above: clean-frame faithfulness and recoverable morphology under noisy wearable conditions are different questions.

Condition family	Current ECG crossover pattern
Clean input	SPIHT wins at 2x-16x; RVQ wins at 32x-64x in the current robustness fixture.
Native / empirical SNR ladder	Hybrid wins native conditions through 32x. RVQ is strongest at high-SNR injected noise; hybrid takes over as SNR falls, with the crossover moving by CR.

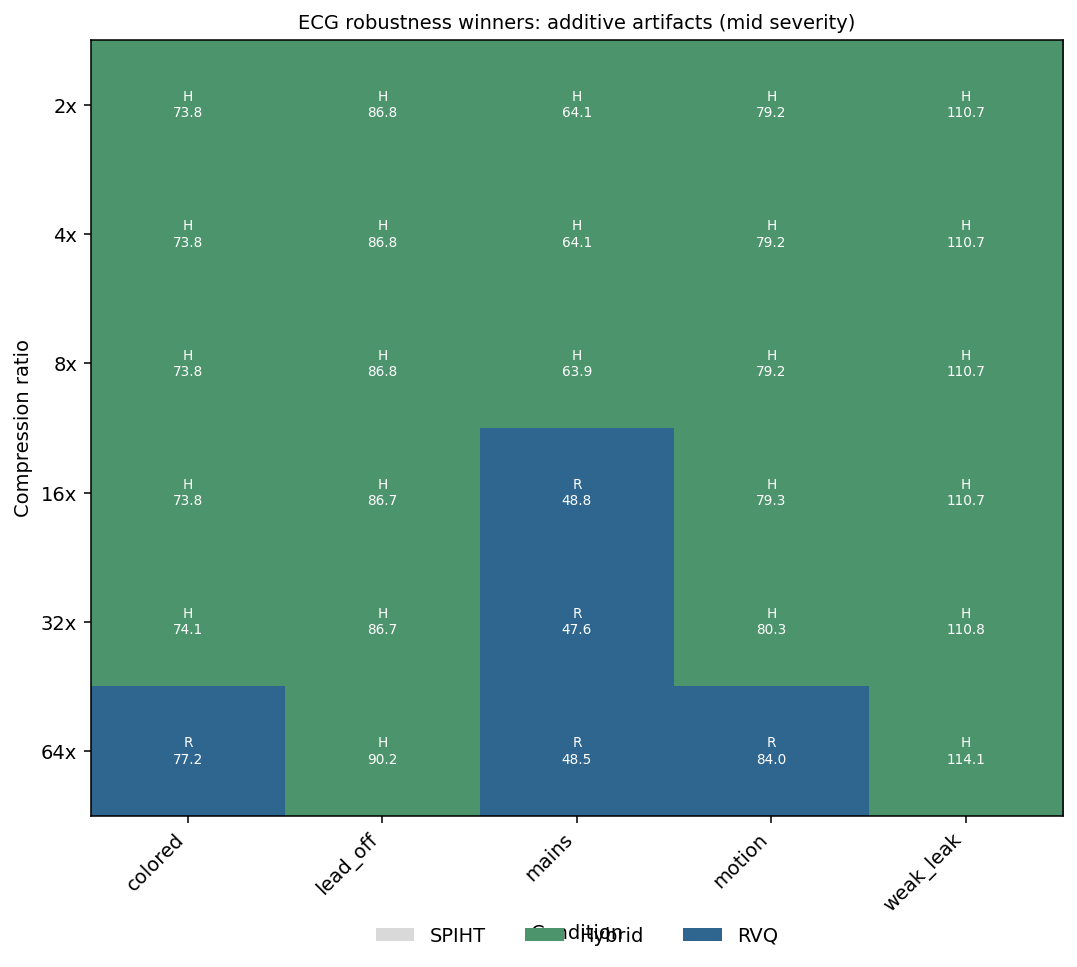

Additive artifacts	Hybrid wins most colored, lead-off, motion, and weak-leak cells. RVQ wins mains interference at 16x-64x and motion at 64x in the current fixture.
Morphology checks	SPIHT is strongest on clean 2x-8x morphology probes; RVQ remains close but is the published neural deployment surface.

The practical read is that SPIHT is a strong clean ECG baseline, RVQ gives the published neural CR ladder, and hybrid lanes are most useful when the input is closer to wearable ECG with empirical noise or contact artifacts. See ECG CR vs fidelity and Validation Scorecard for the detailed scorecard definitions and noise-aware metrics.

Model Details

Architecture

All ECG models share the same architecture as PPG models:

• Encoder: Strided Conv2D blocks (stride 2 per stage) with depthwise-separable convolutions, followed by a 1×1 projection to embedding_dim=16
• RVQ bottleneck: EMA-updated codebooks with 256 entries, 8 bits/index
• Decoder: UpSampling2D + Conv2D mirror of the encoder
• Training: EMA decay 0.99, base filters 48, 200 epochs

Compression Ratio Breakdown

Model	Encoder Stages	Downsample	Latent Positions	RVQ Levels	Bits/Frame
02x	1	2×	256	2	4096
04x	2	4×	128	2	2048
08x	3	8×	64	2	1024
16x	4	16×	32	2	512
32x	4	16×	32	1	256
64x	5	32×	16	1	128

Model	CR
02x	2.00×
04x	4.00×
08x	8.00×
16x	16.00×
32x	32.00×
64x	64.00×

Frame size = 512 samples (2 s at 256 Hz). Raw frame = 8192 bits (16-bit). Codebook size K = 256 (8 bits/index).

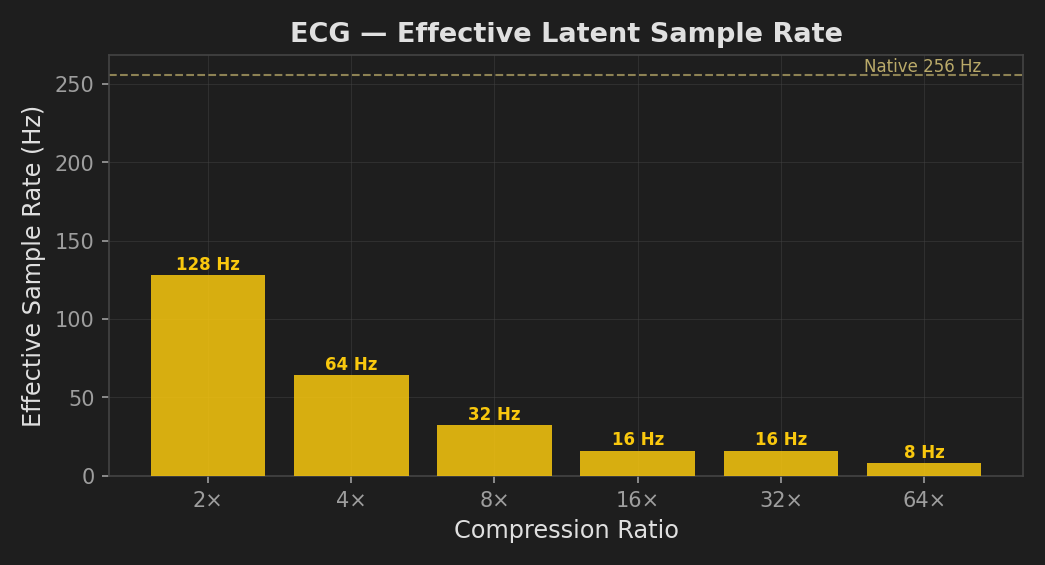

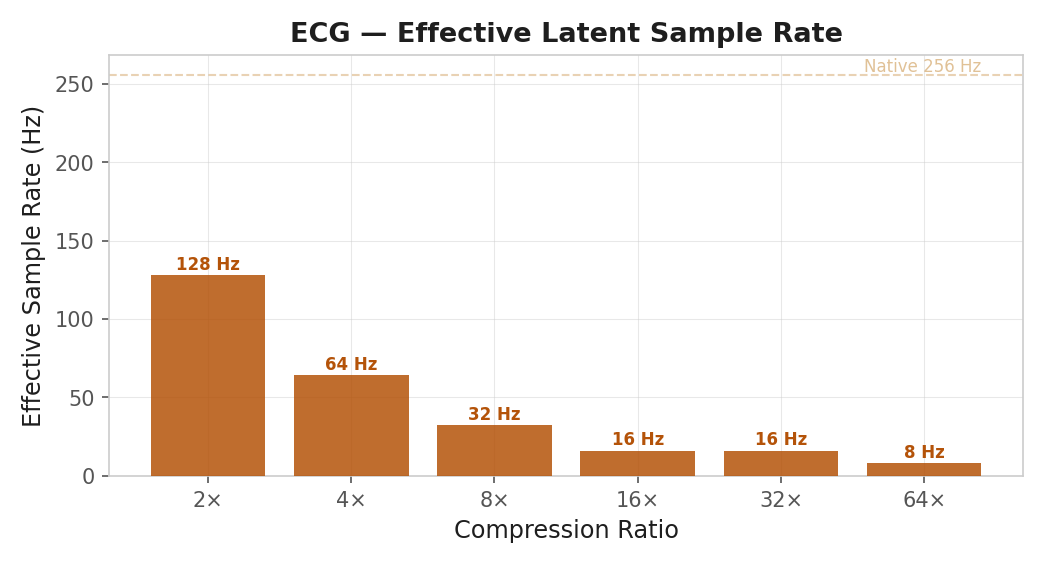

Latent sample rate plots

Loss Function

• Primary: MSE
• Auxiliary: Derivative loss (weight 0.1) — preserves waveform first-derivative (morphology)

Dataset: PTB-XL

The PTB-XL dataset contains 21,799 12-lead ECG recordings at 500 Hz from 18,885 patients. It is publicly available under the PhysioNet Credentialed Health Data License.

compressionKIT resamples from 500 Hz to 256 Hz and uses Lead II (lead_index=1). The dataset is stored as HDF5 files.

Getting Access

PTB-XL is freely available from PhysioNet:

1. Create an account at physionet.org
2. Complete the required training (CITI Data or Research Ethics)
3. Sign the data use agreement
4. Download from PTB-XL v1.0.3

Data Preparation

# Download and convert to HDF5
python -m compressionkit.datasets.ptbxl --download --output datasets/ptbxl

Or point the config data.data_dir to your existing PTB-XL HDF5 directory.

Training

# Train a specific compression ratio
uv run compressionkit golden run ecg-rvq-8x

# Train all six golden configs
uv run compressionkit golden run-all --modality ecg --method rvq

Output Structure

results/ecg_rvq_256hz_08x_golden/
├── best_model.weights.h5       # Best checkpoint
├── config.json                 # Frozen config
├── summary.json                # Training metrics
├── training_history_*.csv      # Epoch-by-epoch metrics
├── tensorboard/                # TensorBoard logs
├── plots/                      # Reconstruction plots
└── deploy/                     # Deployment artifacts
    ├── encoder.tflite          # INT8 quantized encoder
    ├── encoder.h               # C header for encoder
    ├── encoder.keras           # Keras encoder model
    ├── decoder.keras           # Keras decoder model
    ├── decoder_float32.tflite  # Float32 LiteRT decoder for host-side decode
    ├── decoder.tflite          # Optional INT8 decoder for on-device decode
    ├── decoder.h               # Optional C header for INT8 decoder
    ├── codebook.npz            # RVQ codebook weights
    ├── codebook.h              # C header for codebook
    ├── sample_data.npz         # 50 validation samples
    ├── model_card.json         # Metadata used for publishing
    └── deploy_manifest.json    # Artifact manifest

Deployment

For the full runtime guide, see Deployment Guide.

Runtime Profile

• Frame shape: (1, 1, 512, 1) float32
• Sample rate: 256 Hz
• Default HuggingFace repo pattern: Ambiq/compressionkit-ecg-{cr}x-v1.1

Quickstart

import numpy as np

from compressionkit.runtime import RVQCodec

t = np.arange(512, dtype=np.float32) / 256.0
signal = (0.75 * np.sin(2.0 * np.pi * 1.1 * t) + 0.12 * np.sin(2.0 * np.pi * 9.0 * t)).reshape(1, 1, 512, 1)

codec = RVQCodec.from_pretrained("Ambiq/compressionkit-ecg-4x-v1.1")
indices = codec.encode(signal.astype(np.float32))
reconstruction = codec.decode(indices)

Deployment Notes

• PTB-XL-based examples can be validated with synthetic waveforms; deployment does not require dataset access.
• The most common split is encoder plus codebook on-device, decoder off-device.
• ECG models can use the same RVQCodec runtime API as PPG even when the training recipe uses transform-domain branches internally.

Extending

To create a new ECG model variant:

1. Copy an existing golden config: cp configs/ecg_rvq_256hz_08x_golden.yaml configs/ecg_rvq_256hz_08x_v2.yaml
2. Modify parameters (e.g. base_filters, num_levels, learning_rate)
3. Train: uv run train-ecg-rvq --config configs/ecg_rvq_256hz_08x_v2.yaml
4. Compare results against the golden baseline
